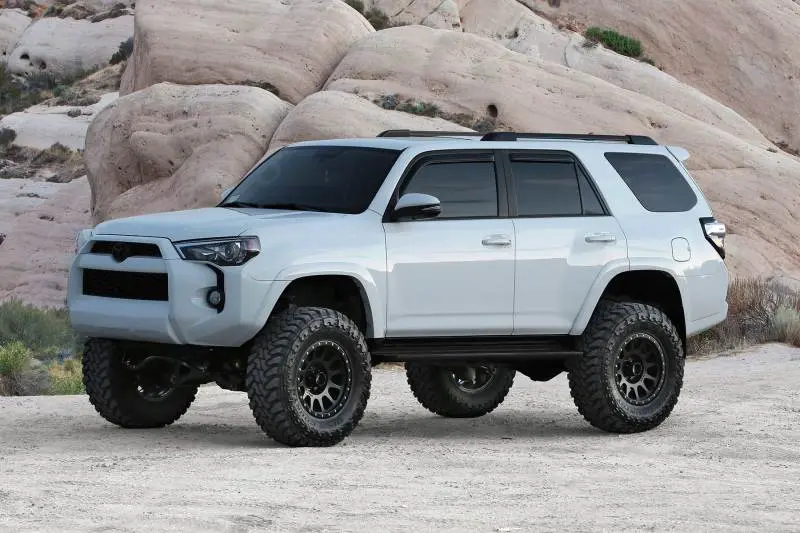

Fabtech 6-Inch Performance Lift System For 2010–2015 Toyota 4Runner 4Wd – Includes 2.5-Inch Reservoir Coilovers And Rear Dual-Adjustable Shocks

Description

This Toyota 4Runner suspension system features Fabtech?s proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4″ thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain for offroad use. The front suspension is controlled with Fabtech?s legendary stainless steel Dirt Logic 2.5 Resi Coilovers for outstanding damping capacity with a superior highway ride. Rear lift is accomplished with steel coil spring spacers that retain the Toyota 4Runner coil springs for a smooth ride. Heavy duty Fabtech control link arms replace the factory arms to re-position the tire in the wheel well with the additional ride height. A stout 1/4″ thick steel bracket relocates the rear Track Bar to keep the vehicle tracking proper. Rear shocks include the Dirt Logic 2.25.
6in. PERF SYS W/DL 2.5 C/O RESI/2.25 10-15 TOYOTA 4RUNNER 4WD
TIRE SIZE – 35/12.50R17 WHEEL – 17X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 35/12.50R18 WHEEL – 18X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 35/12.50R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; 68. KIT DOES NOT FIT MODELS WITH FACTORY ELECTRONIC CONTROLLED SHOCKS.; 168. WILL NOT FIT TRD PRO MODELS; 183. DOES NOT WORK WITH KDSS SWAY BAR SYSTEM; 186. 2015 MODELS W/ M12-1.25 CALIPER BOLTS ONLY. HAVE DEALER CHECK VIN TO VERIFY.

Fitment:
Toyota 4Runner Limited 2010
Toyota 4Runner Limited 2011
Toyota 4Runner Limited 2012
Toyota 4Runner Limited 2013
Toyota 4Runner Limited 2014
Toyota 4Runner Limited 2015
Toyota 4Runner Limited 2016
Toyota 4Runner Limited 2017
Toyota 4Runner SR5 2010
Toyota 4Runner SR5 2011
Toyota 4Runner SR5 2012
Toyota 4Runner SR5 2013
Toyota 4Runner SR5 2014
Toyota 4Runner SR5 2015
Toyota 4Runner SR5 2016
Toyota 4Runner SR5 2017
Toyota 4Runner Trail 2010
Toyota 4Runner Trail 2011
Toyota 4Runner Trail 2012
Toyota 4Runner Trail 2013
Toyota 4Runner Trail 2014
Toyota 4Runner Trail 2015
Toyota 4Runner Trail 2016
Toyota 4Runner TRD Off-Road 2017
Toyota 4Runner TRD Pro 2015
